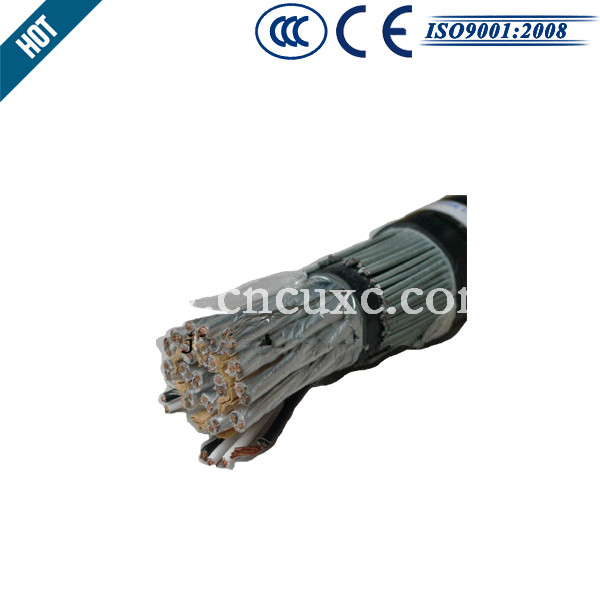

Copper Conductor, XLPE Insulation, Overall Screen, LSOH Sheath Instrumentation Cable

Our company specialized in Cable/Electrical Wire/ Conductor product

Copper Conductor, XLPE Insulation, Overall Screen, LSOH Sheath Instrumentation Cable

type:Instrumentation Cable

standard:IEC/BS

size:0.5MM2-1.5MM2

construction:CU / PE / OS / LSZH

rating voltage:300/500V

conductor material:Copper

conductor construction:Solid or Stranded

insulation material: XLPE

shield construction:Aluminum/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm²

sheath material:LSZH

specification or package can be produced as your request.

INQUIRY

Application
The unarmored LSOH versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, also used for the interconnection of electrical equipment and instruments,the LSOH sheath can reduce toxic smoke and fume emission.

Construction
Conductor
Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² multi-stranded(Class 5),
0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multi-stranded(Class 2) to BS6360
Insulation
XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing
Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Binder tape
Polyester tape
Collective screen
Aluminum/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Outer sheath
Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath color
Black or blue
Operating temperature:
-20˚C up to + 90˚C (fixed installation)
0˚C to +50˚C (during operation)
Minimum bending radius: 5 x OD

Conductor Area Size mm² 0.5 0.5 0.75 1 1.5
Conductor Stranding No. x mm 1 x 0.8  16 x 0.2  24 x 0.2  1 x 1.13 7 x 0.53
Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
Insulation resistance min Gohm/km 5 5 5 5 5
Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250 250 250 250 250
Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two- pairs) pF/m 115 115 115 115 120
Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75 85
Max. L/R Ratio for adjacent cores(Inductance/ Resistance) μH/ohm 25 25 25 25 40
Test voltage Core to core V 1000 1000 1000 1000 1000
Test voltage Core to screen V 1000 1000 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500 300/500 300/500
No.of Pairs No.and Dia. Of Wires Nominal Conductor Cross- Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
no./mm mm² mm mm mm kg/km
1 1/0.8 0.5 0.5 0.8 5.5 35
2 1/0.8 0.5 0.5 0.8 6.8 55
5  1/0.8 0.5 0.5 1.1 10.9 125
10 1/0.8 0.5 0.5 1.2 14.4 215
15  1/0.8 0.5 0.5 1.2 16.5 300
20  1/0.8 0.5 0.5 1.3 18.8 385
30  1/0.8 0.5 0.5 1.3 22.3 545
50  1/0.8 0.5 0.5 1.5 28.5 875
1 16/0.2 0.5 0.6 0.8 6.2 60
2 16/0.2 0.5 0.6 0.8 7.6 80
5 16/0.2 0.5 0.6 1.1 12.4 210
10 16/0.2 0.5 0.6 1.2 16.5 340
15 16/0.2 0.5 0.6 1.3 19.2 440
20 16/0.2 0.5 0.6 1.3 21.7 570
30 16/0.2 0.5 0.6 1.5 26.4 780
50 16/0.2 0.5 0.6 1.7 33.4 1130
1 24/0.2 0.75 0.6 0.8 6.7 75
2 24/0.2 0.75 0.6 0.9 8.4 100
5 24/0.2 0.75 0.6 1.2 13.8 250
10  24/0.2 0.75 0.6 1.3 18.4 450
15 24/0.2 0.75 0.6 1.5 21.1 600
20 24/0.2 0.75 0.6 1.5 24.4 920
30 24/0.2 0.75 0.6 1.7 29.5 980
50 24/0.2 0.75 0.6 2 37.6 1690
1 1/1.13 1 0.6 0.8 6.6 85
2 1/1.13 1 0.6 0.8 8 115
5 1/1.13 1 0.6 1.2 13.5 290
10 1/1.13 1 0.6 1.2 17.7 500
15 1/1.13 1 0.6 1.3 20.6 670
20 1/1.13 1 0.6 1.5 23.8 950
30  1/1.13 1 0.6 1.5 28.4 1030
50 1/1.13 1 0.6 2 36.6 1750
1 7/0.53 1.5 0.6 0.8 7.5 100
2 7/0.53 1.5 0.6 0.9 9.3 150
5  7/0.53 1.5 0.6 1.2 15.6 360
10 7/0.53 1.5 0.6 1.3 20.9 690
15 7/0.53 1.5 0.6 1.5 24.6 880
20 7/0.53 1.5 0.6 1.5 27.8 1230
30 7/0.53 1.5 0.6 1.7 33.7 1560
50 7/0.53 1.5 0.6 2 43 2400
